ISSUED: 01-25-12 SHEET #: 095-9368-5 02-22-13

If you have any questions, please call Peerless customer care at 1-800-865-2112.

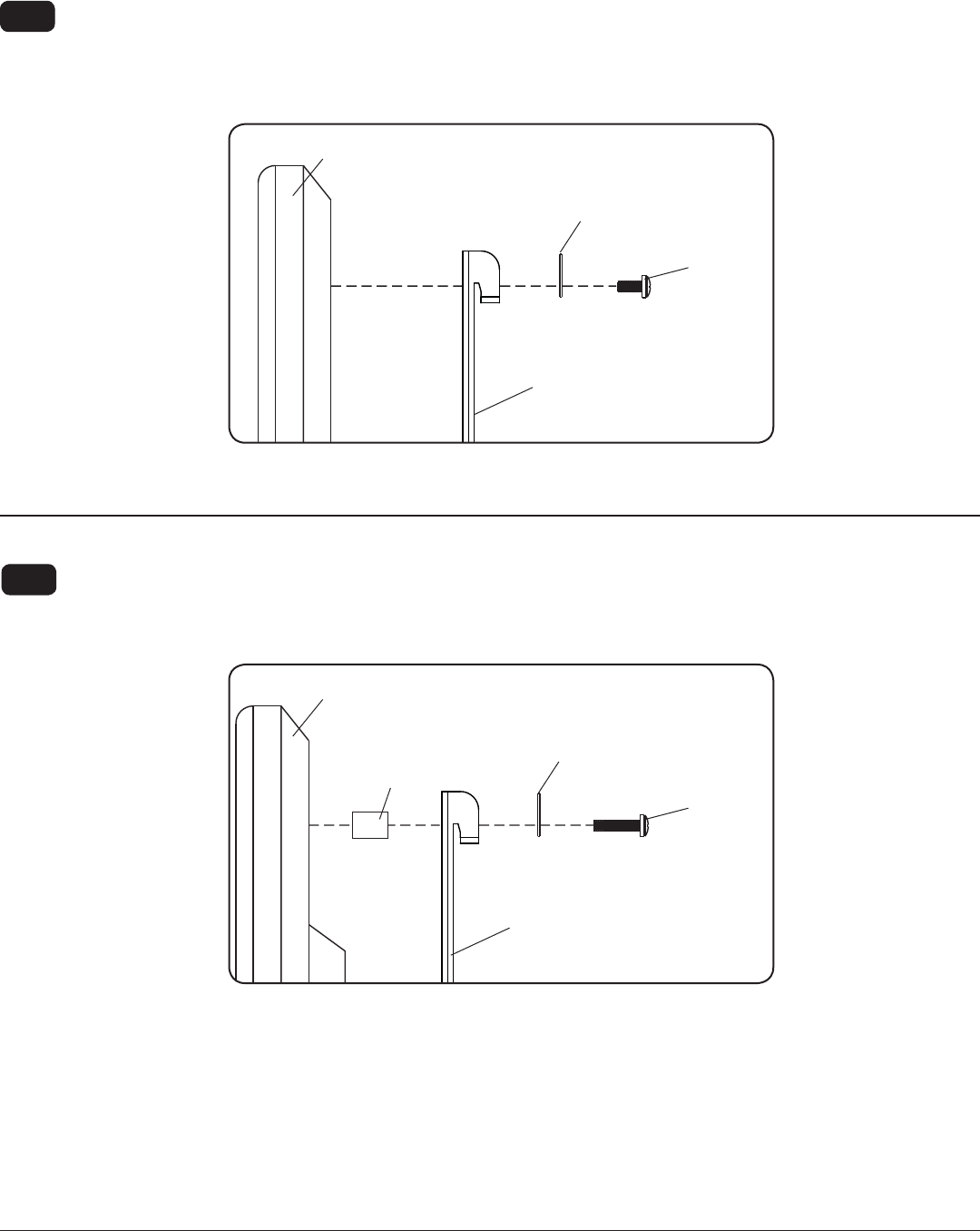

Begin with the shortest length screw, hand thread through multi-washer and adapter bracket into display as shown

below. Screw must make at least three full turns into the mounting hole and ﬁ t snug into place. Do not overtighten.

If screw cannot make three full turns into the display, select a longer length screw from the bafﬂ ed fastener pack.

Repeat for remaining mounting holes, level brackets and tighten screws.

NOTE: Spacers may not be used, depending upon the type of display.

Begin with longer length screw, hand thread through multi-washer, adapter bracket and spacer in that order into

display as shown below. Screw must make at least three full turns into the mounting hole and ﬁ t snug into place.

Do not overtighten. If screw cannot make three full turns into the display, select a longer length screw from the

bafﬂ ed fastener pack. Repeat for remaining mounting holes, level brackets and tighten screws.

For Flat Back Display

For Bump-out or Recessed Back Display

2-1

2-2

DISPLAY

MULTI-WASHER

SCREW

ﬁ g. 2.2

ﬁ g. 2.1

SPACER

ADAPTER BRACKET (B)
